Radial - Decoder

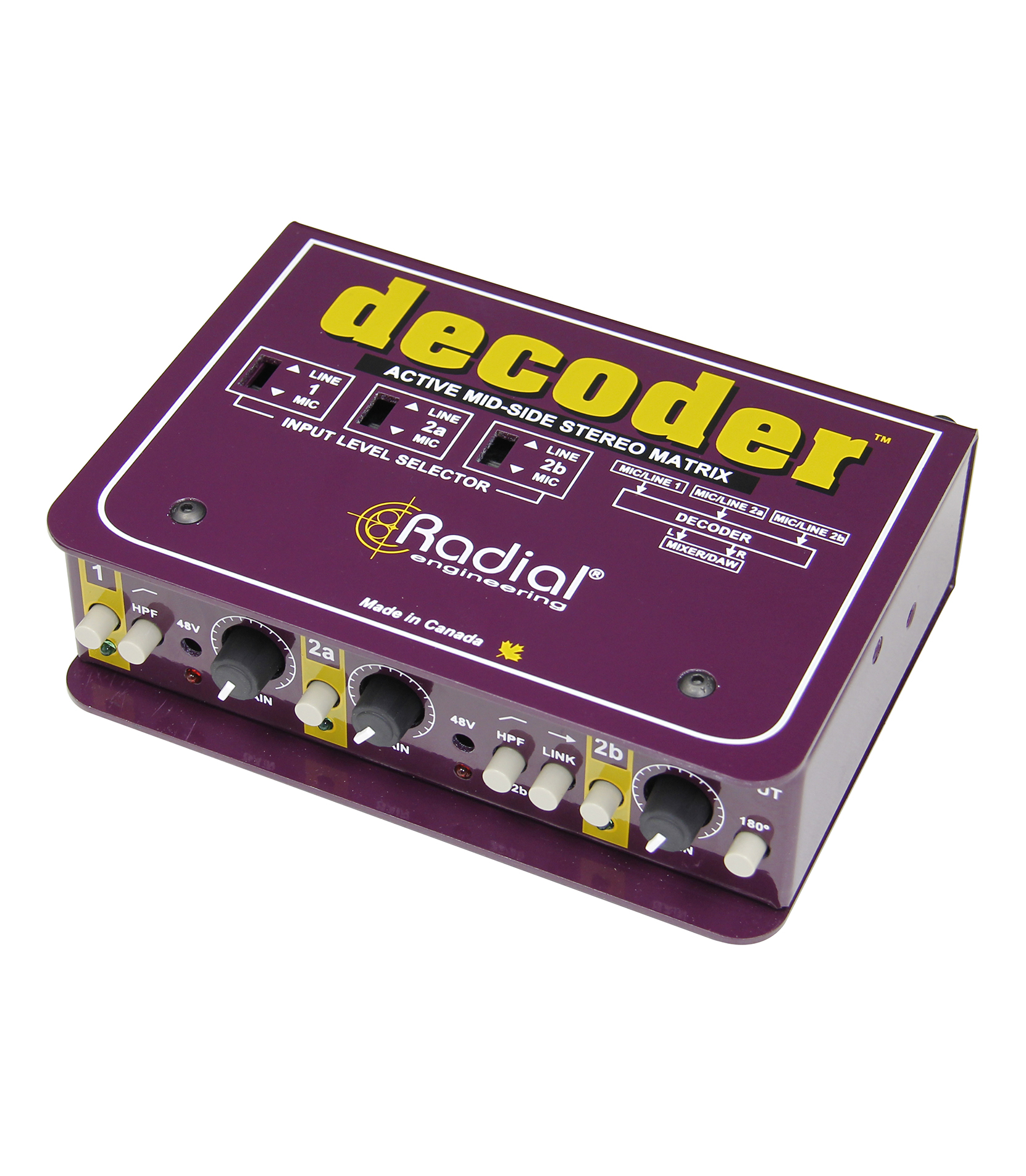

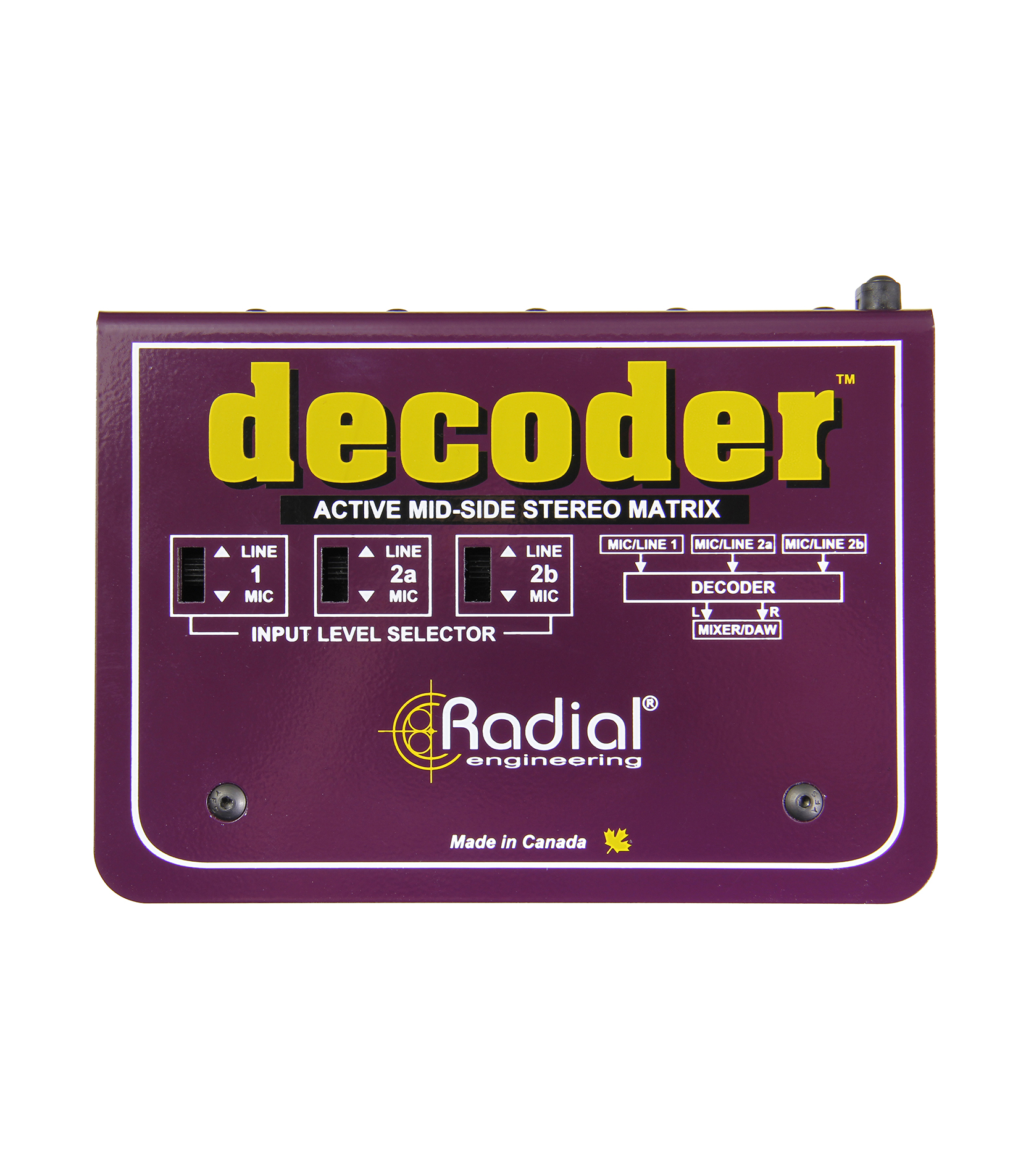

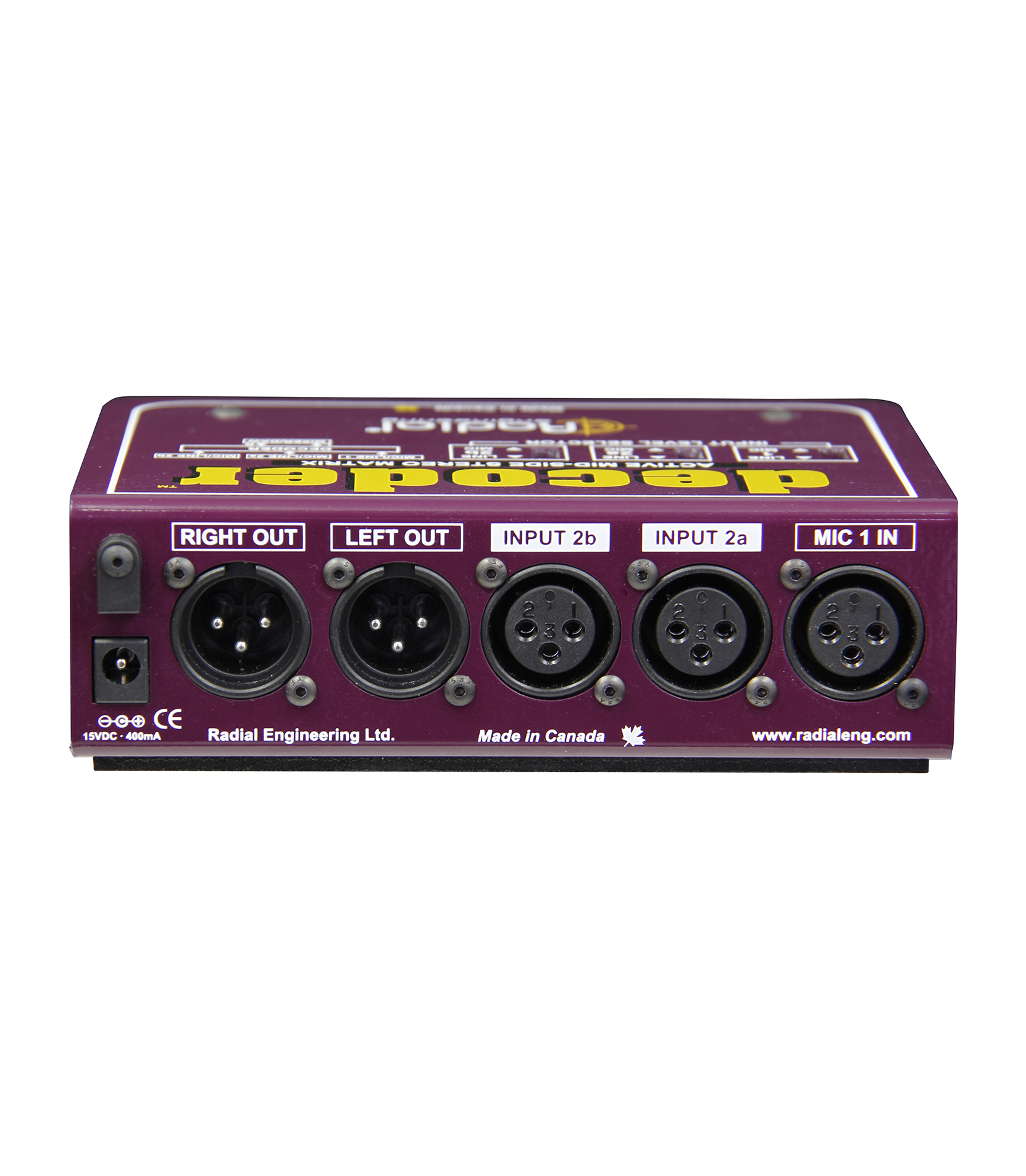

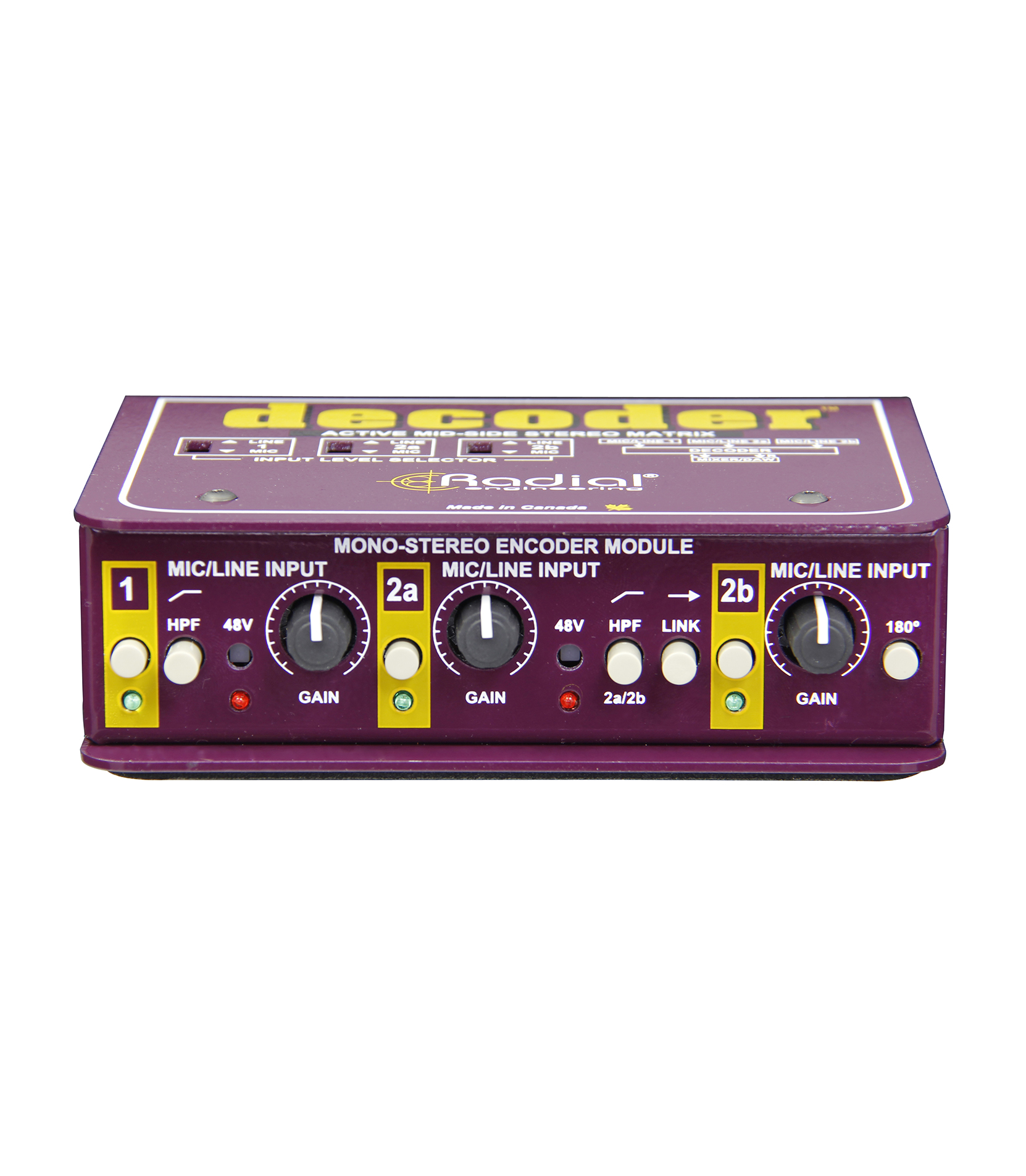

The Radial Decoder is a microphone preamp and mid/side stereo matrix that allows the user to easily create M/S recordings without having to re-configure a recording console. Featuring built-in mic pre's with phantom power and independent level control, the Decoder automatically combines the signals to a stereo output using the sum-difference method for spectacular stereo imaging that translates well to mono for broadcast. The Decoder begins with three ultra-quiet microphone preamps. The mic/line input-1 is assigned to the MID or direct microphone, while mic/line input-2a is assigned to the SIDE microphone. A link button automatically duplicates and pans the signal and flips the phase for a traditional M/S stereo image when used with figure-8 microphones. Mic/line input-2b allows the Decoder to be used with a pair of cardioid microphones rather than a figure-8. This opens up the door for a variety of microphones and different spacing techniques to be employed for ultimate convenience and creativity. The Decoder can also be switched to +4dBu line level for Reamping™ pre-recorded material during mix-down. Simply record a SIDE microphone while tracking and bounce to a stereo M/S image later. As the Decoder is intended for use in the studio or in the field, the chassis is built out of heavy duty 14-gauge steel. The internal I-beam frame and book-end construction prevents premature damage to internal circuitry and protects knobs and switches from impact. A full bottom no-slip pad provides electrical insulation and mechanical isolation to reduce mishap. The chassis can also be rack- mounted on its own or with other Radial products using an optional rack kit. Decoder from Radial is 100% original and is available at Edge Electronics. Speak to our expert for booking a live demonstration. After sales customer service is an integral part of our business ethic and is taken very seriously.

  • Order by Part Number
    • Part Number: R800141500
    • Price: AED 1,234.64 (Inc. VAT)
    • Discount: 35% OFF
  • Shipping Info

    Generally ships between 2 - 4 working days from order confirmation.

Edge Electronics - Brand Radial  Edge Electronics - Product
Contact Our
 Edge Electronics - user  Edge Electronics  Dubai - Product

Email: [email protected]
Whatsapp: +971 52 1421535

  • Product Specifications
    Title Value
    Construction 14-gauge steel chassis & outer shell
    FinishDurable powder coat
    Power15V 400mA Power Adapter
