ClearCom - Encore Beltpack: 1Ch

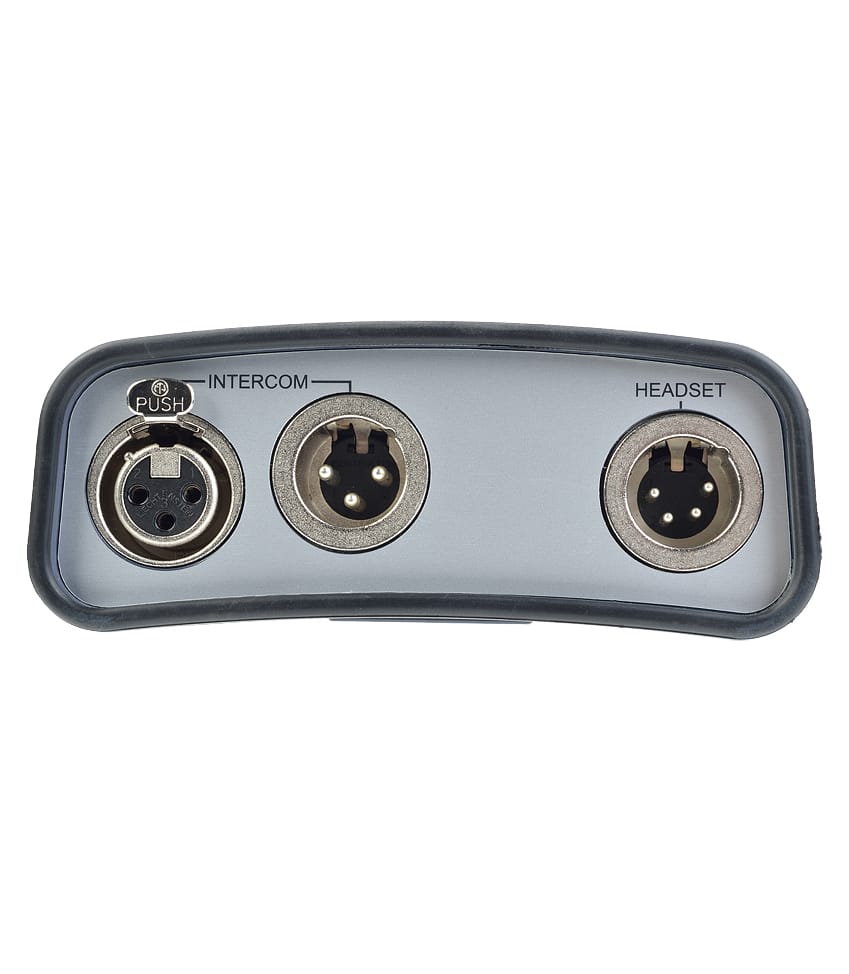

The RS-701 is a single-channel analog beltpack with an XLR-3 line connector and XLR-4M headset connector. A mic preamp with a dynamic range of 130 db enables intelligible voice communication for every volume level, from a whisper to a shout. The beltpack also combines high headroom, low-noise audio and shaped frequency contour (Clear-Com Sound) to deliver crystal-clear audio. The RS-701 is compatible with all Encore partyline products, as well as the PL-Pro line and other partyline systems via Encore interfaces. RS701 from ClearCom is 100% original and is available at Edge Electronics. Speak to our expert for booking a live demonstration. After sales customer service is an integral part of our business ethic and is taken very seriously.

  • Order by Part Number
    • Part Number: RS-701
  • Shipping Info

    Generally ships between 2 - 4 working days from order confirmation.

Edge Electronics - Brand ClearCom  Edge Electronics - Product
Contact Our
 Edge Electronics - user  Edge Electronics  Dubai - Product

Email: [email protected]
Whatsapp: +971 52 1421535

  • Product Specifications
    Title Value
    Frequency Response � Line to Headphone 150 – 20k Hz ± 3dB
    Headphone input from line � Audio Level (-9dBm Electret input) 3.5dBm
    Headphone input from line � Signal to Noise >50dB
    Mic to Line (without limiter acting) Frequency Response 280 – 15k Hz ± 3dB
    Microphone output to line � Audio Level (-50dBm Electret input) -9dBm
  • Tutorials & Manuals
    Description Language Download
    User Manual English
